Presses (81190)
Manufactured 1992

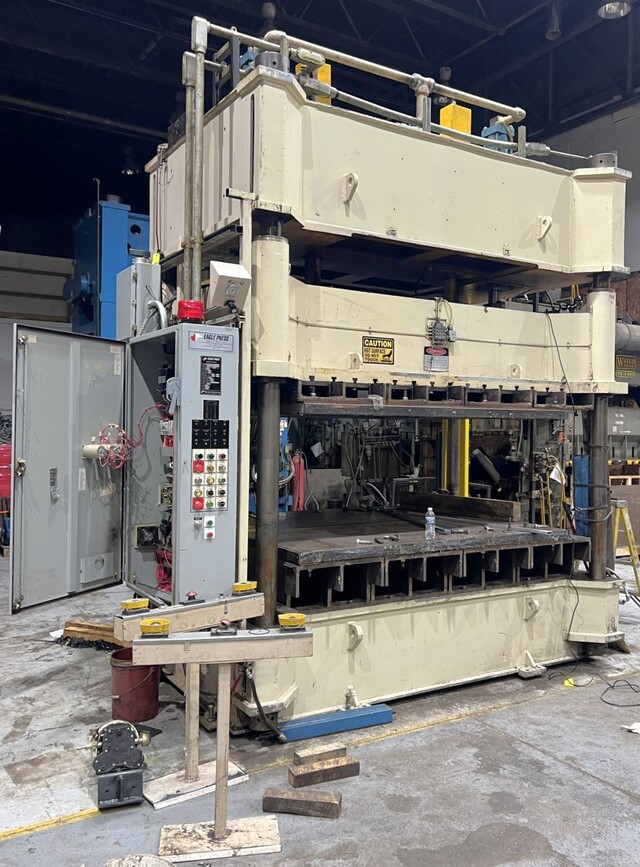

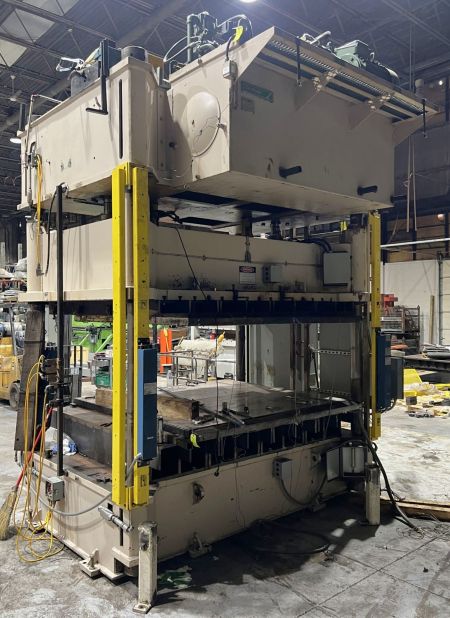

100 Ton Eagle Hydraulic Press

Specifications
CAPACITY: 100 tons @ 3540 PSI
STROKE: 40"
SHUT HEIGHT (SDAU): approx. 59" (to be verified0
BED AREA: 120" RL X 80" FB
DIST. BED TO FLOOR: 26.25"
MODEL: PH2-100-104-63		Features
  • - Distance between posts: 104" x 64"

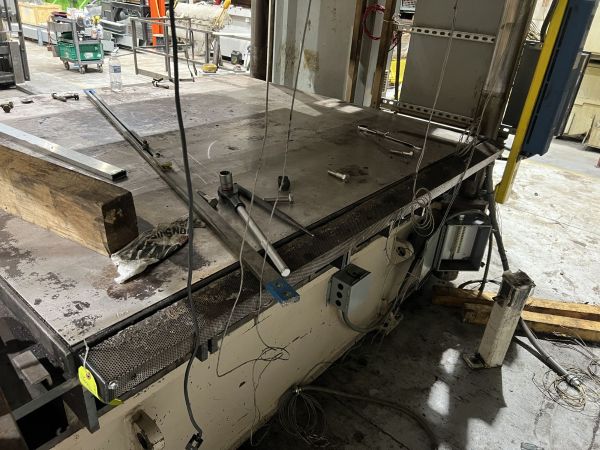

  • - Usable bed area: 104" x 80"

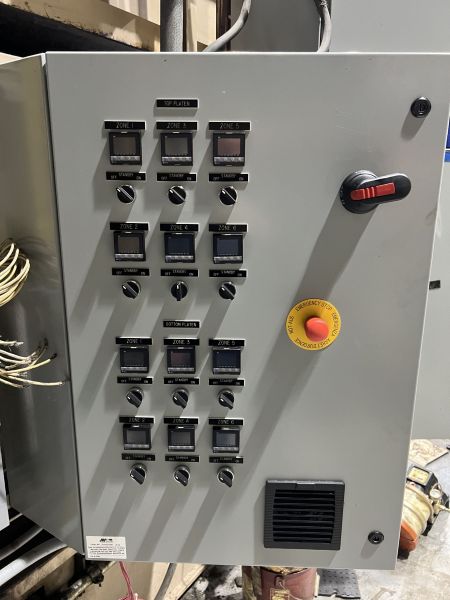

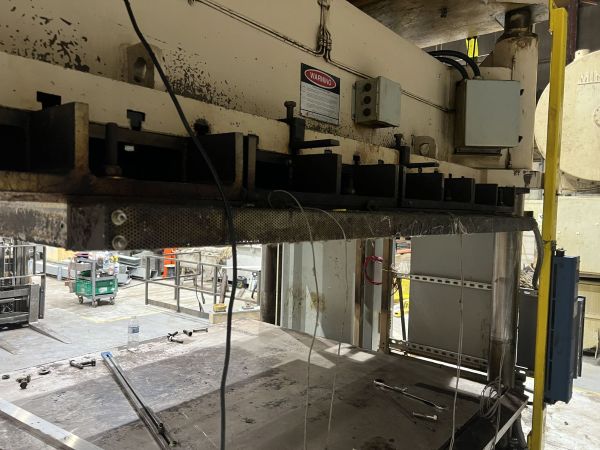

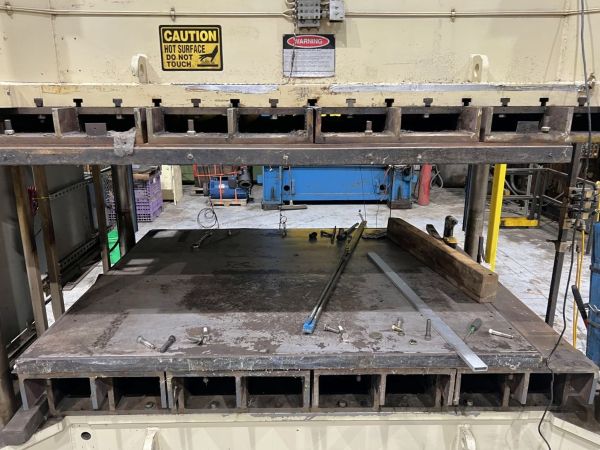

  • - Electric heated platens: 85" x 75" x 3" thick - on 13" bed riser & 5" ram riser
  • - Cylinder size: 2) 6" dia. bore
  • - Posts & column size: 5" dia.

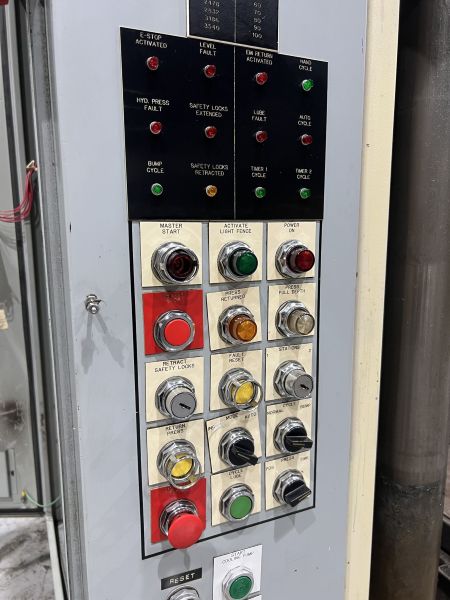

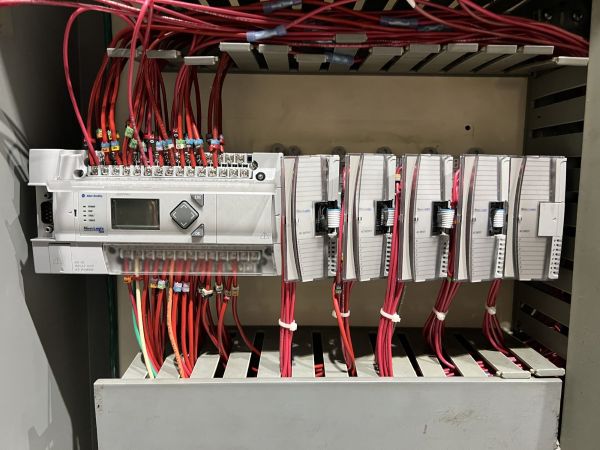

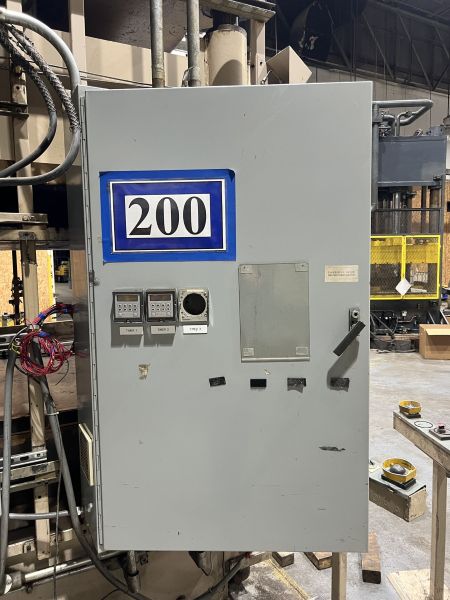

  • - Press controls: Allen Bradley Micrologix 1400
  • - Electric motor: 53 HP, 460/3/60
  • - Assembled press dimensions: 154" x 122" x 180" H
  • - Press shipping dimensions: 188" x 108" x 128" H - 46,000 lbs.
  • - Platen shipping dimensions: 108" x 84" x 72" H - 7,500 lbs.
  • - Hydraulic unit shipping dimensions: 96" x 60" x 74" H - 6,000 lbs.
  • - Parts pallet: 120" x 48" x 24" H - 2,000 lbs.
  • EQUIPPED WITH:

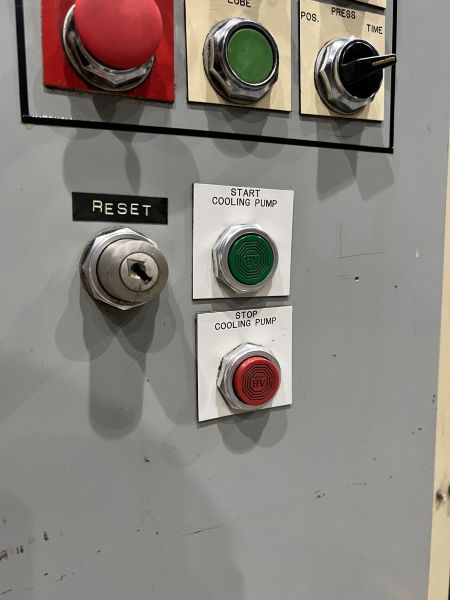

  • - Cooling Pump
  • Additional photos available.
