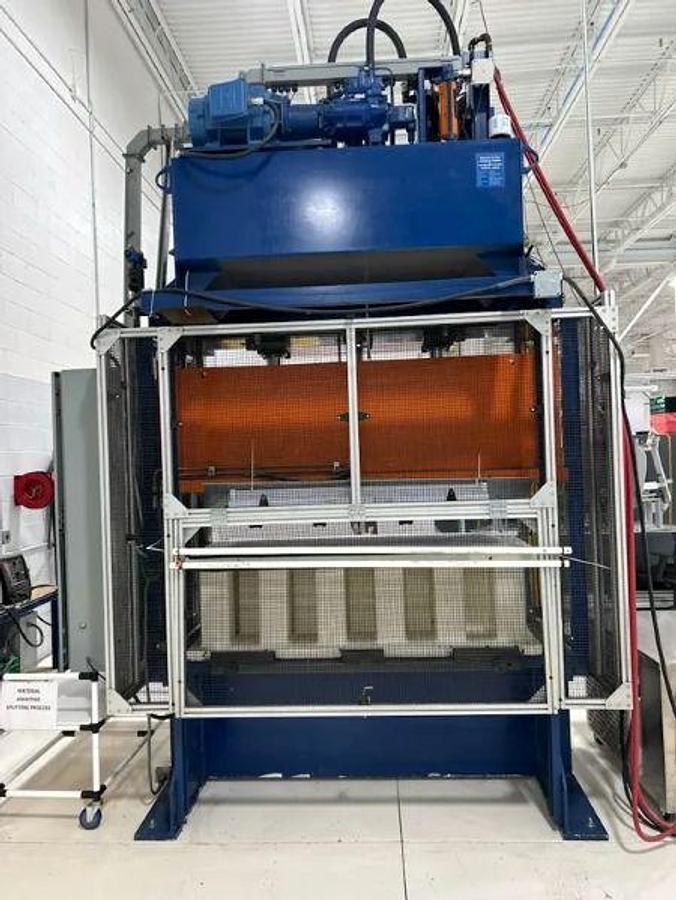

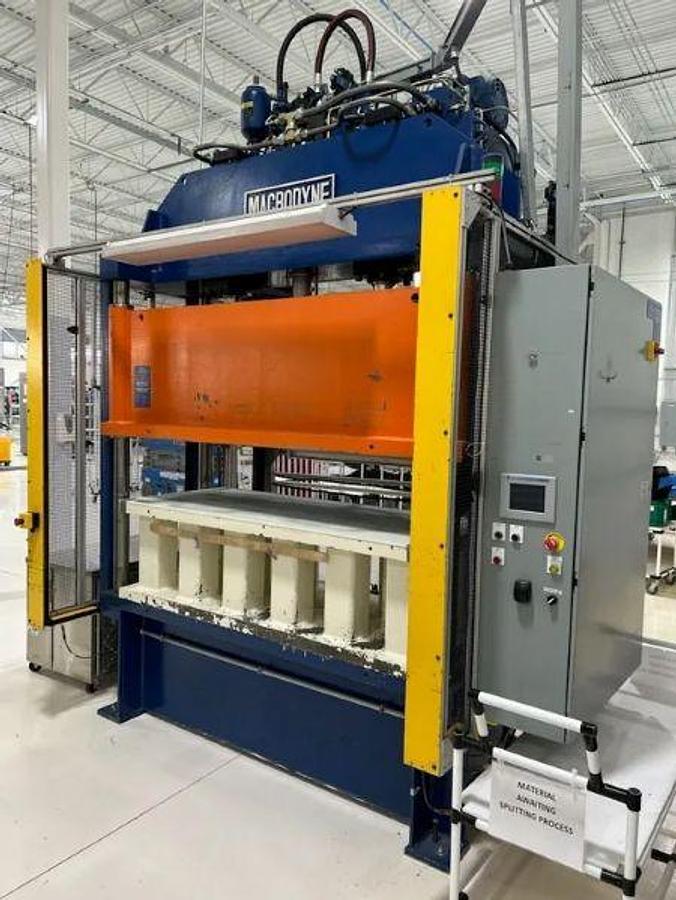

50 Ton Macrodyne 4-Post Hydraulic Press

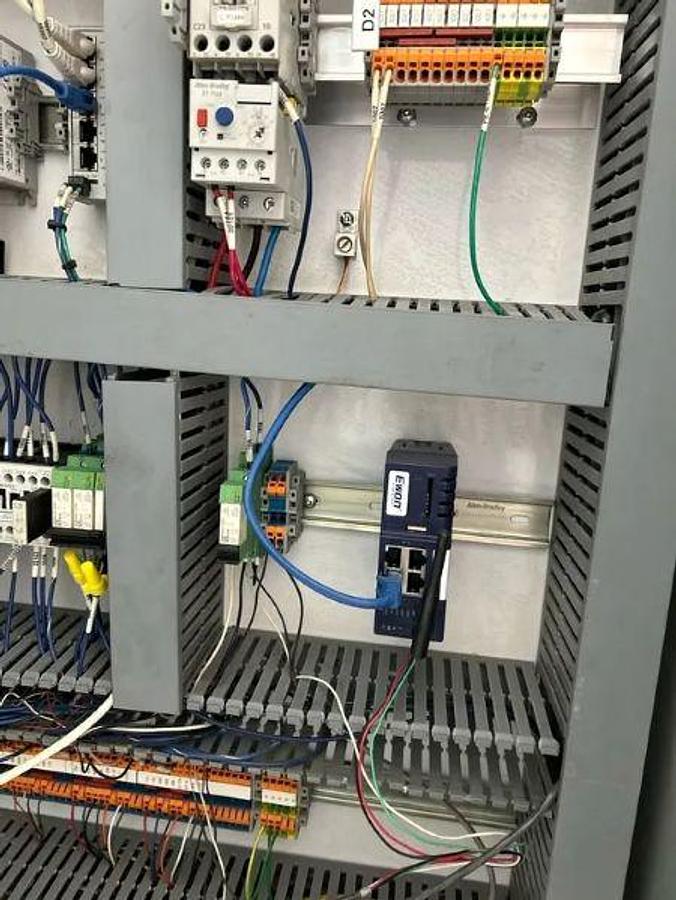

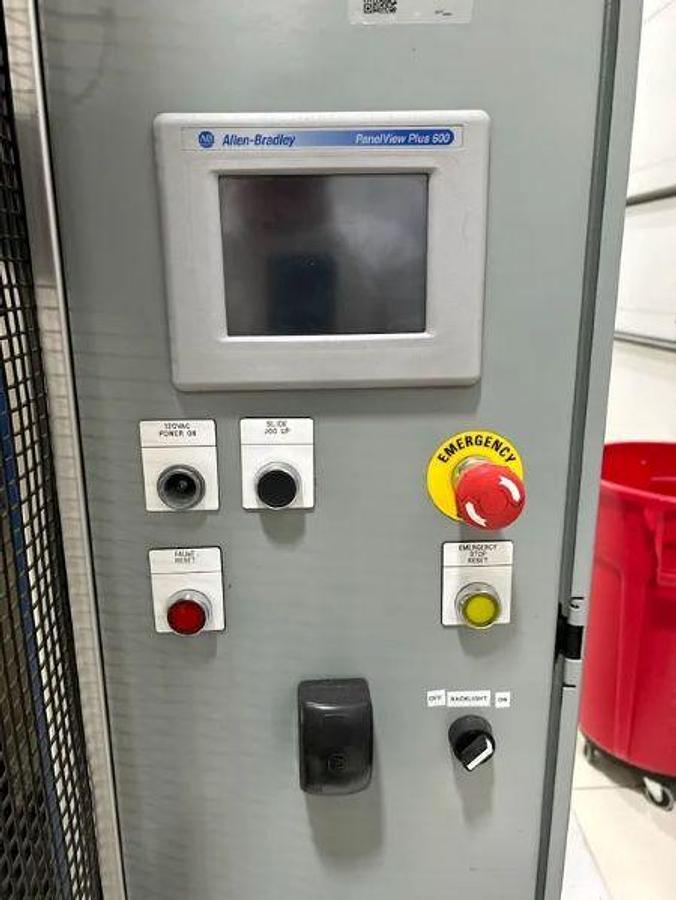

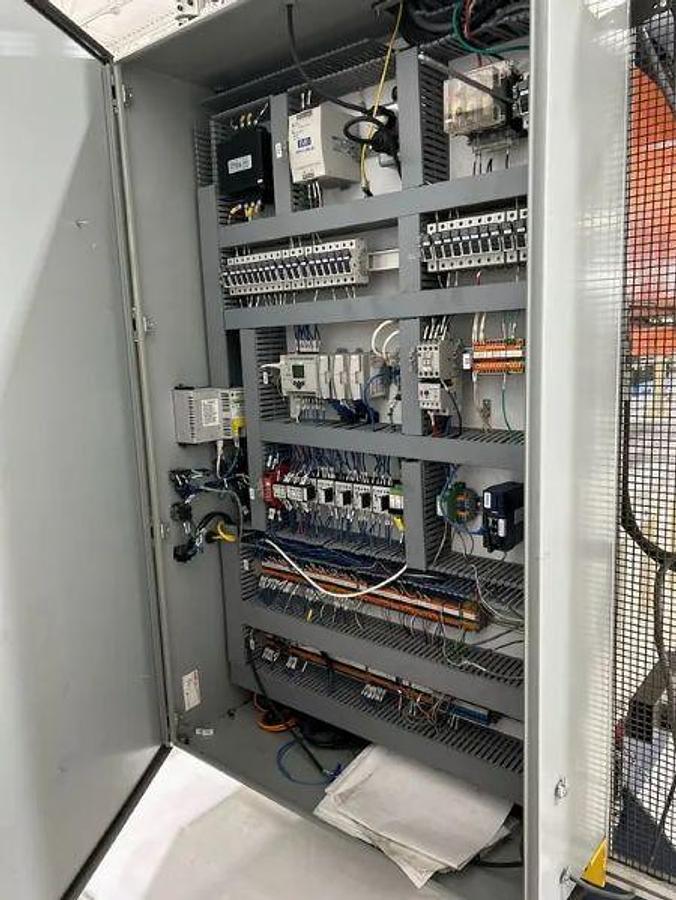

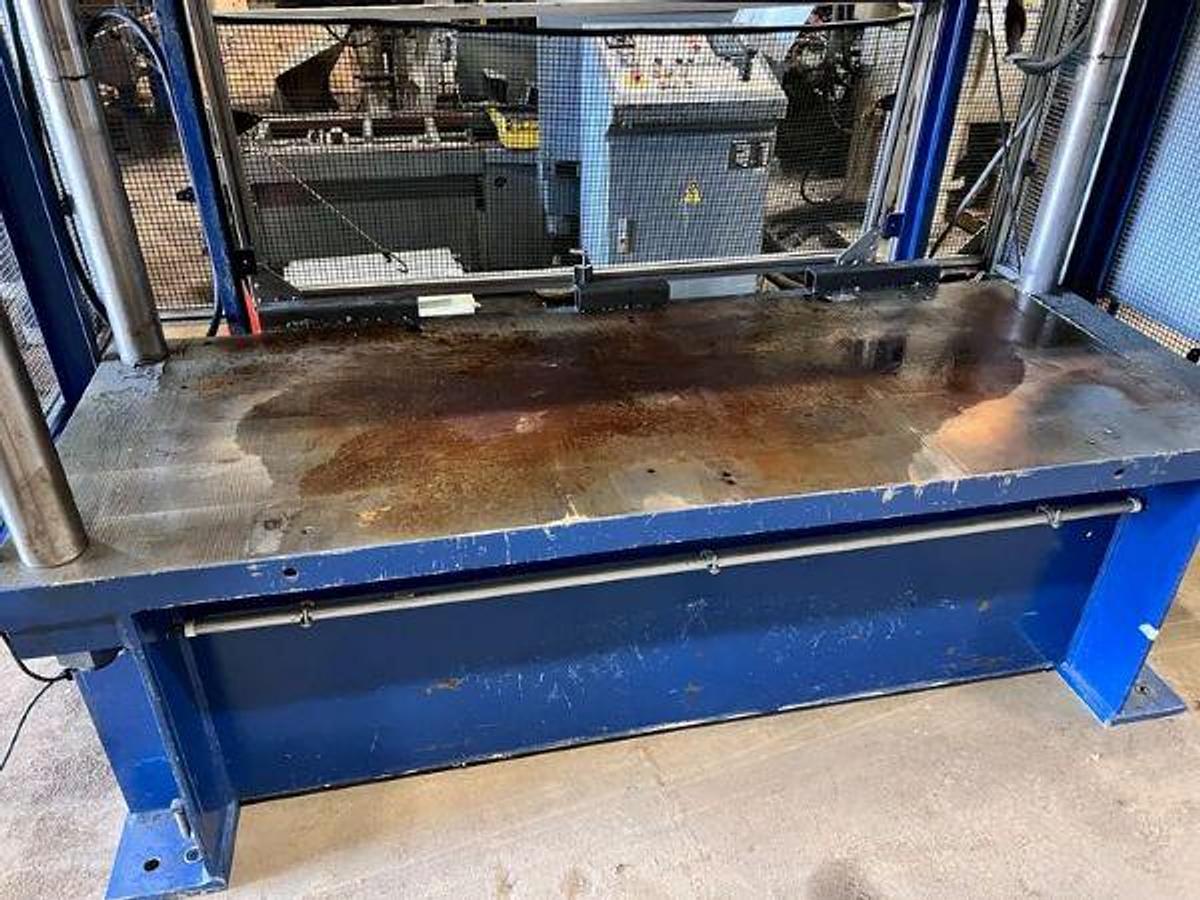

Daylight opening: 36" Pressing force: 50 ton Maximum return force: 1.5 ton Usable bed size: 72" LR x 30" FB Usable slide size: 72" LR x 30" FB Distance between columns: 72" LR x 22" FB Open daylight: 36" Closed daylight: 16" Stroke: 20" Speeds - Approach: 19.5@5.0/second = 3.90 sec. Pressing: 0.5" @ 0.5"/second = 1.00 sec. Return: 20.0"@5.0/second = 4.00 sec. Shifting time etc. = 1.00 second Total dry cycle = 9.90 sec. Hydraulic system operating pressure: 2,600 PSI Electrics: 480/3/60 Controls: Allen Bradley Panelview 600 Control features: Programmable pressing speed, slide position and monitoring via position transducer, multi-mode capability, programmaable dwells, jog function, security screen, fault diagnositcs. NOTE: Chiller unit in video NOT INCLUDED. AVAILABALE AT ADDITIONAL COST: - 70" LR x 30" FB x 19-1/2" H Steel spacer...........POR
