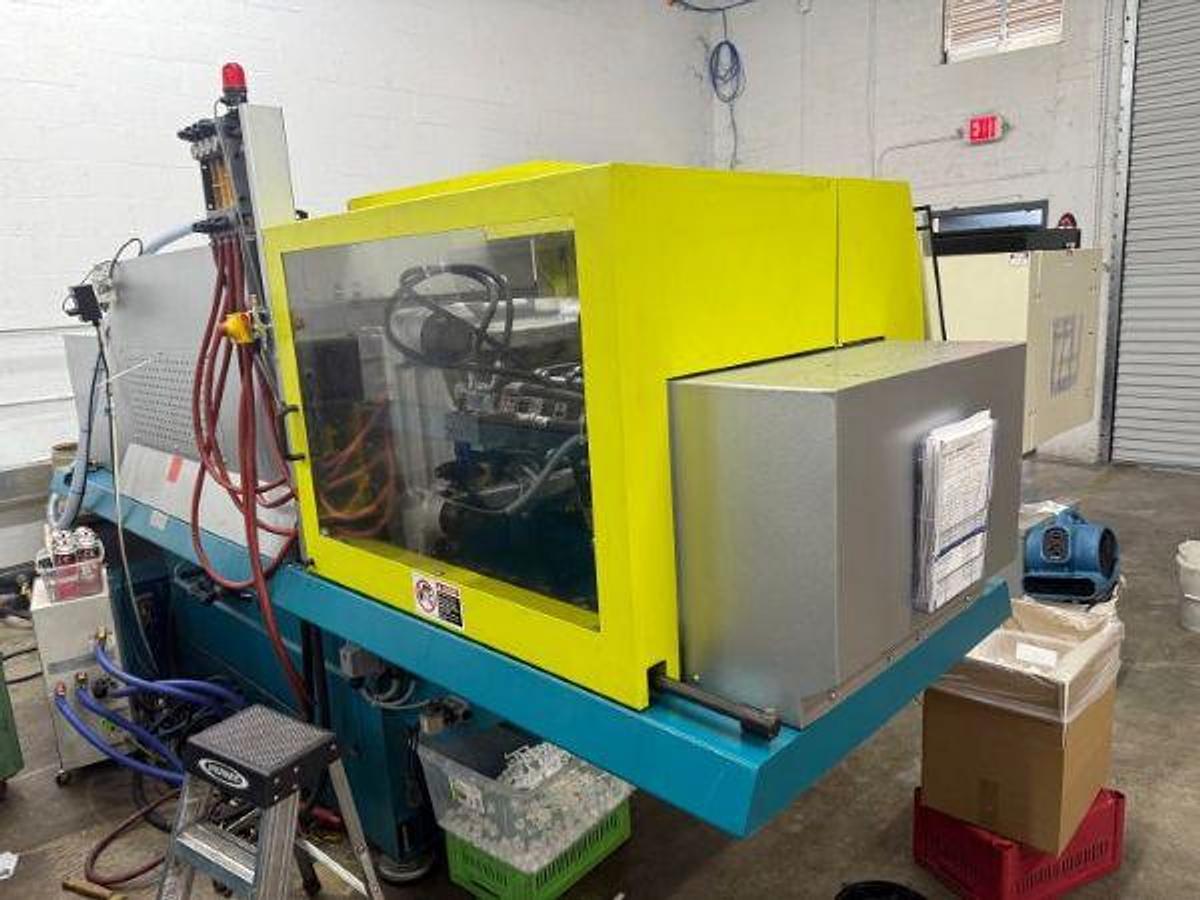

90 Ton Boy Injection Mold Machine
Description
EQUIPPED WITH: - Procan Alpha 2 Control - Patented pressure intensifier with integrated valve function - Most exact positioning of the moving platen via proportional valve & servo drive technology - Two-part safety gate of the clamping unit - Easily accessible ejector - Optimum L/D ration of the screw - Lateral swivel-out injection unit - Robust machine frame with integrated oil tank 3 Machines Available Hours - 5,281, 7,497 & 8,547
Specifications
| Manufacturer | Boy |
| Model | 90E-PRO |
| Year | 2017 |
| Condition | Used |
| Stock Number | 81213 |
| Shot Size | 9 oz. |
| Tonnage | 90 |
| Tie Bar Spacing | 16.92" x 14.17" |
| Daylight | 28.54" (35.43") |
| Clamp Stroke | 18.7" |
| Mold Thickness | 9.8" (16.73") |
