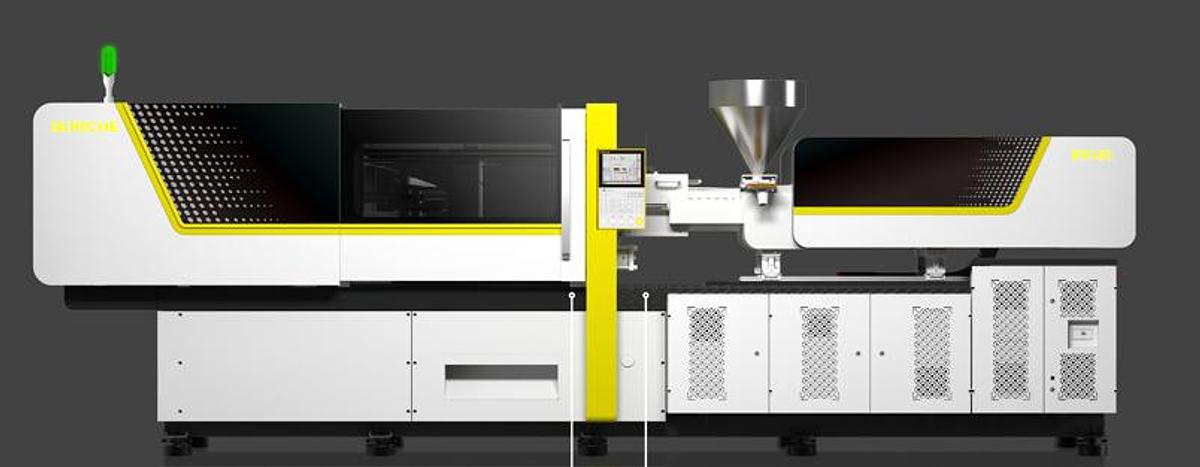

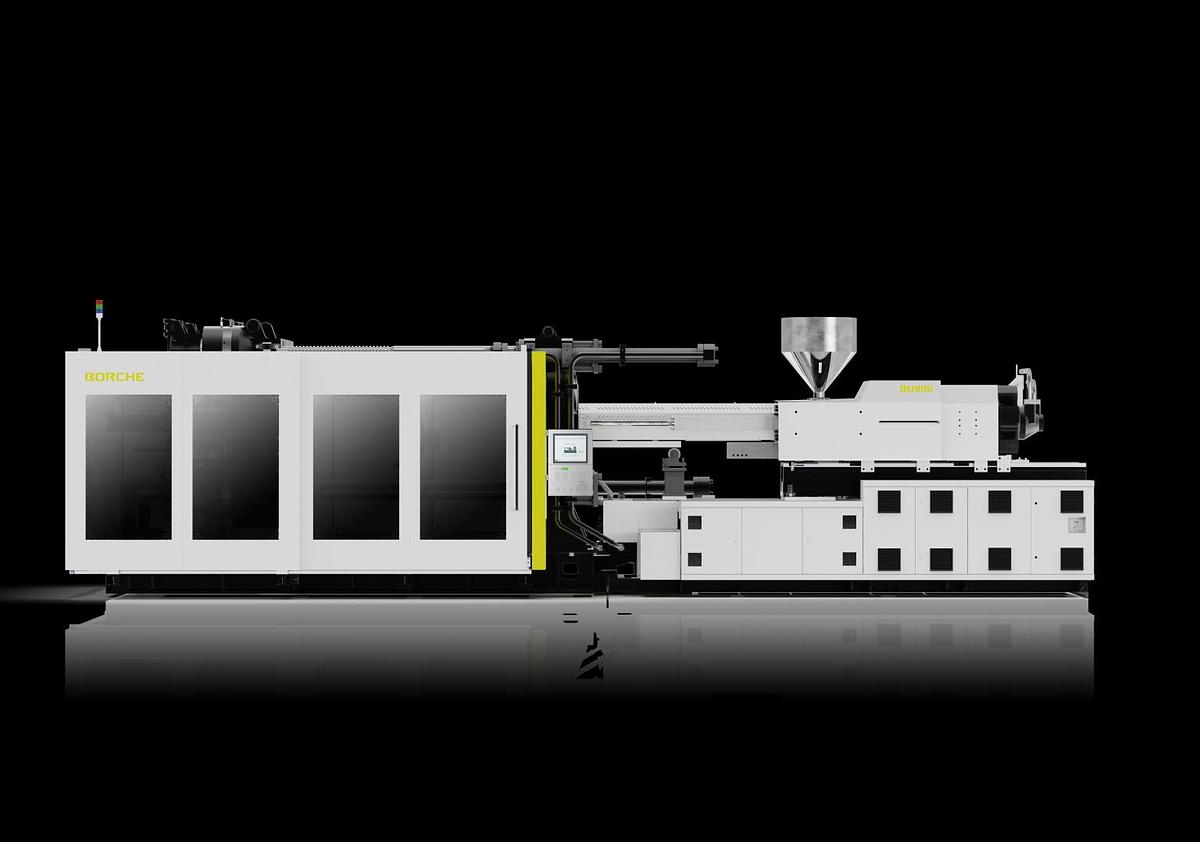

400 Ton Borche Injection Mold Machine
Description
EQUIPPED WITH: - KEBA 2980 Control - Eject on the fly - Swivel injection unit - 480/3/60 - 90A - 2X Core Pull - 4X Air Blow - Robot Interface Euromap 12 - SPI Platens - Hydraulic Safety Interlock - Mechanical safety interlock with sensor - 3-Color alarm - Mold ejector plate monitor - Centralized grease lubrication - Nozzle purge guard with switch - Nozzle with thermocouple control - Back pressure valve - Pilot check valve - Oil alarm - 6) Zone water manifolds - Leveling pads, tool kit, spare parts box **Free Startup and Training by Borche service
Specifications
| Model | Bi400 |
| Condition | Used |
| Stock Number | 1182 |
| Shot Size | 49.3/56.6/64.5/81.6 |
| Tonnage | 400 |
| Tie Bar Spacing | 28.74" x 28.74" |
| Platen Size | 42.52" x 42.52" |
| Daylight | 56.69" |
| Clamp Stroke | 27.95" |
| Mold Thickness | 10.24"/28.74" |
