250 Ton Arburg Allrounder All Electric Injection Mold Machine Multi-Component
Description

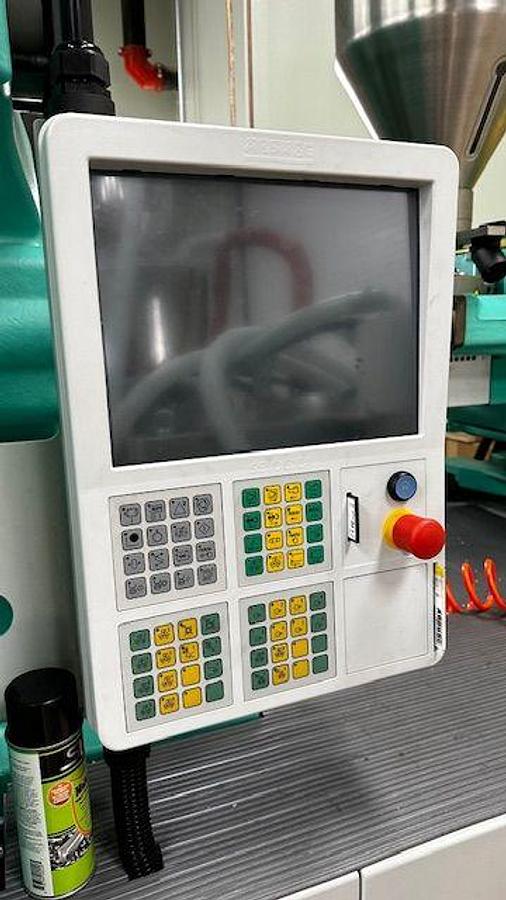

- Selogica Control

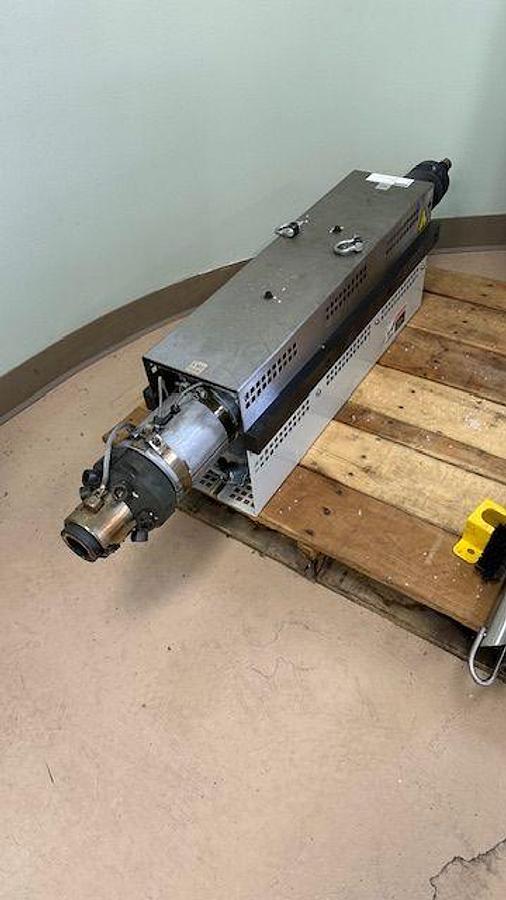

- 2nd injection unit - (630 A 2500-400) 2.11 oz.
- Servo hydraulic pump for ejectors and core pull

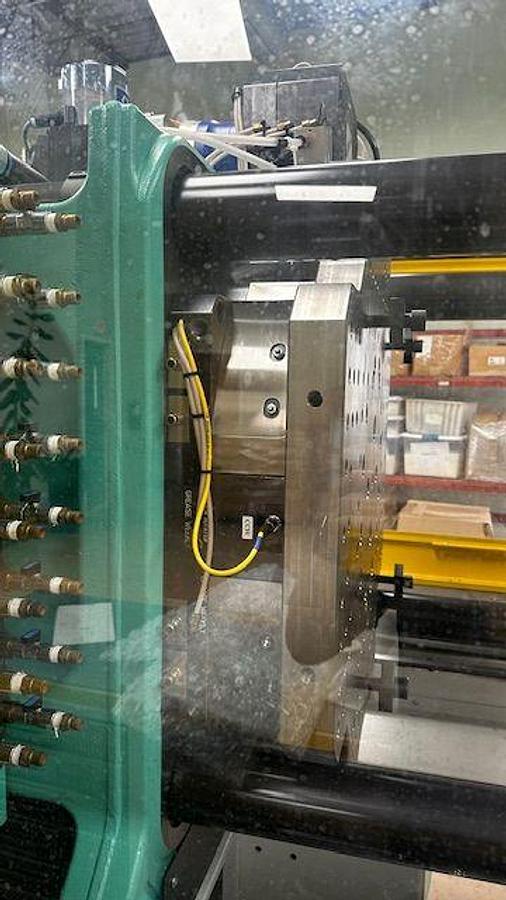

- MGS Rotary Platen
- Small hydraulic accumulator system with 11 kW motor and 20 ccm pump
- Machine configured with 460/3/60 with integrated transformer (230 volt) for nozzle and
nozzle tip heaterbands
- Core Pull
- 3) Hydraulic core pull controls
- 3) Pneumatic core pull controls
- 1) Electric core pull control
- Software package: Additional monitoring functions, extended movements, production
control, optimizaton/user help, quality assurance, documentation
- Printer interface
- Robot interface
PRICE INCLUDES THE FOLLOWING:

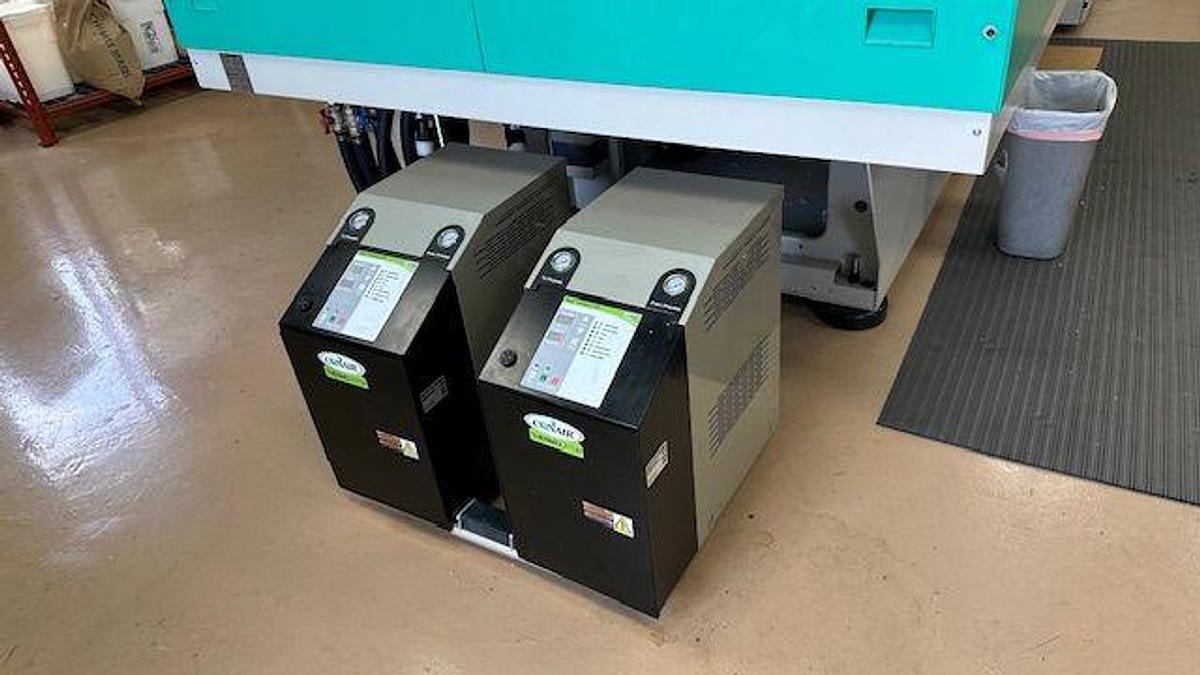

- 2) Conair Temperature Controllers

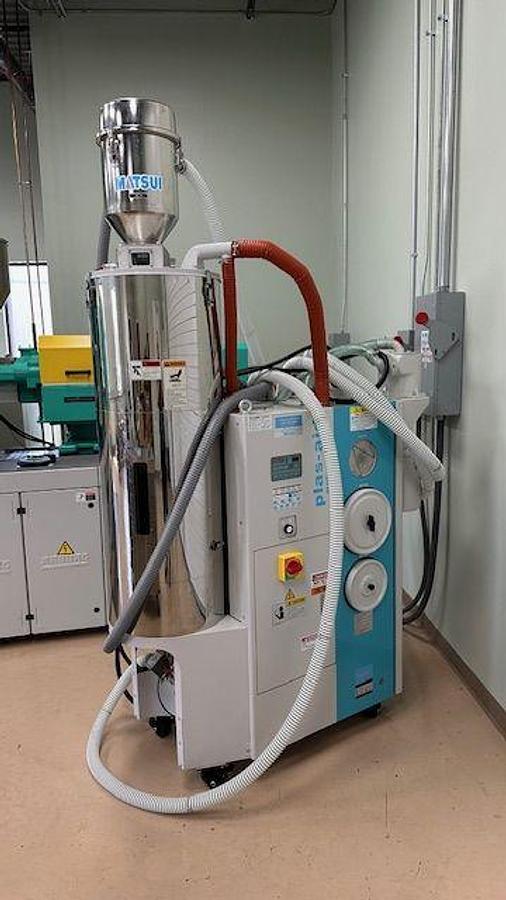

- Matsui Dryer/Hopper combo on cart

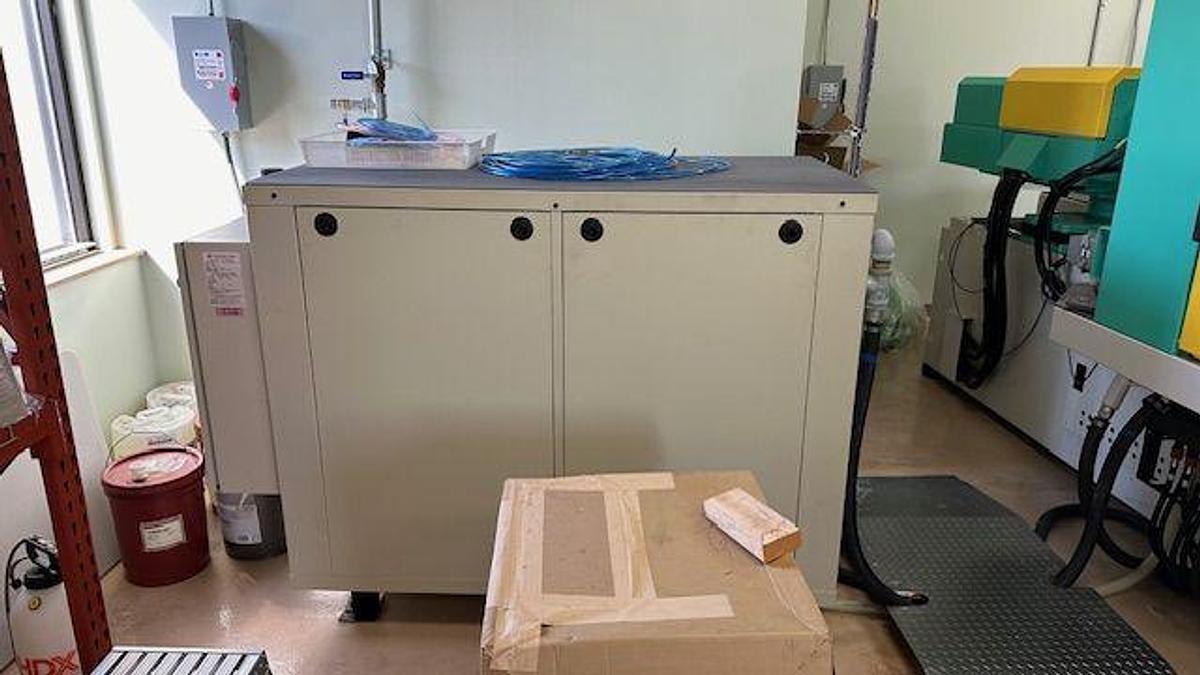

- Chiller
Specifications
| Model | Allrounder 630A 2500-800 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 81201 |
| Shot Size | 5.29 oz. |
| Tonnage | 250 |
| Tie Bar Spacing | 24.80" x 24.80" (630 x 630) |
| Platen Size | 35.43" x 35.43" (900 x 900) |
| Daylight | 33.46"/51.18" (850/1300) |
| Clamp Stroke | 21.65" (550) |
| Mold Thickness | 11.81"/29.52" (300/750) |
