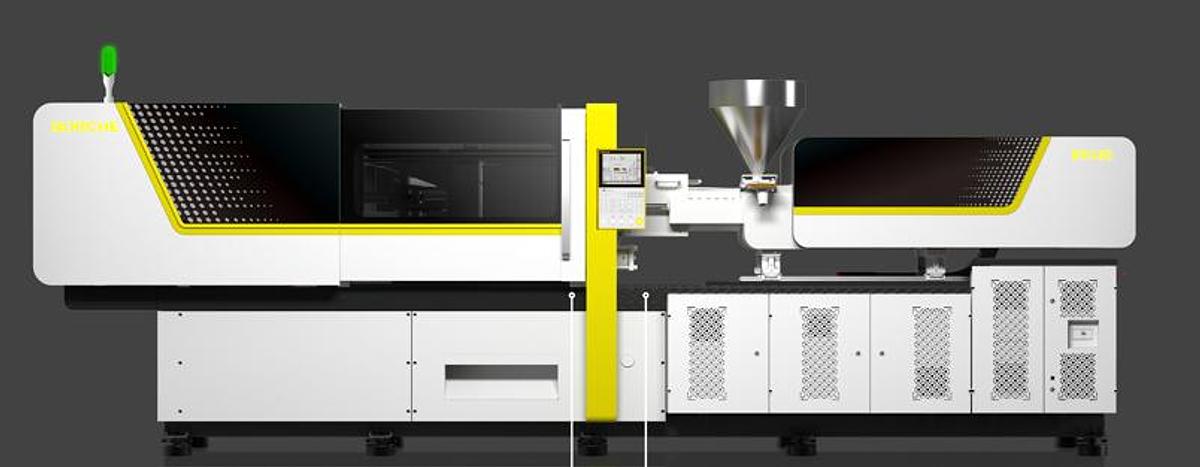

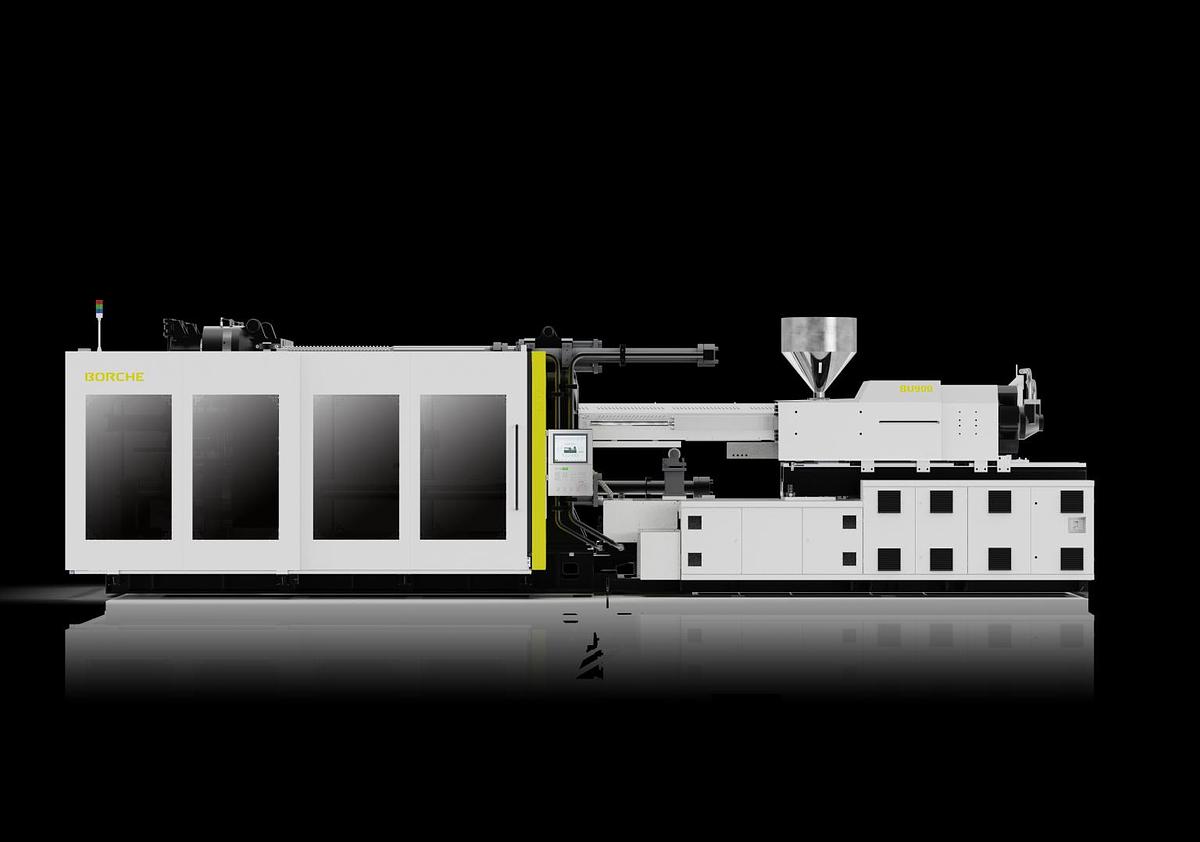

1200 Ton Borche Injection Mold Machine
Description
- CE Standard - KEBA 2580 Controller - 480/3/60 - 2 X Core Pull - 4 X Air Blow - SPI Robot Interface - SPI Platens - Centralized grease lubrication - Nozzle purge guard - Water manifolds - Anti-Vibration leveling pads - ServiceNet - Start up by Borche North America Service BU MACHINE ADVANTAGES: - Shorter machine - smaller footprint - More precise, clamp force can be adjusted - Easier mold change - Machine is more stable and reliable, faster mold opening - BU has larger mold opening stroke, ideal for running larger parts
Specifications
| Manufacturer | Borche |
| Model | BU1200-V |
| Condition | Used |
| Stock Number | 81165 |
| Shot Size | 255.63 oz. |
| Tonnage | 1200 |
| Tie Bar Spacing | 51.18" x 47.24" |
| Platen Size | 75.59" x 71.65" |
| Daylight | 102.36" |
| Mold Thickness | 55.22"/78.74" |
