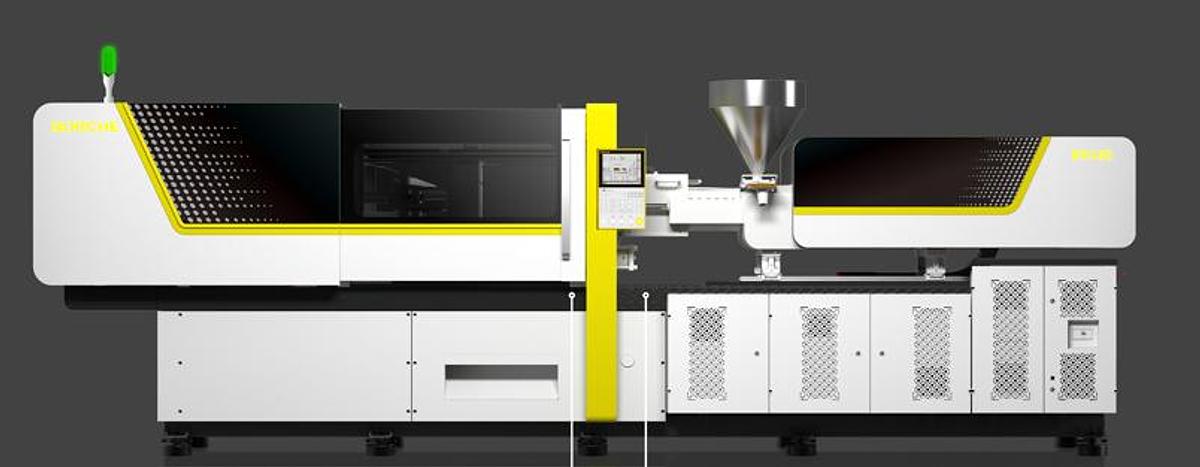

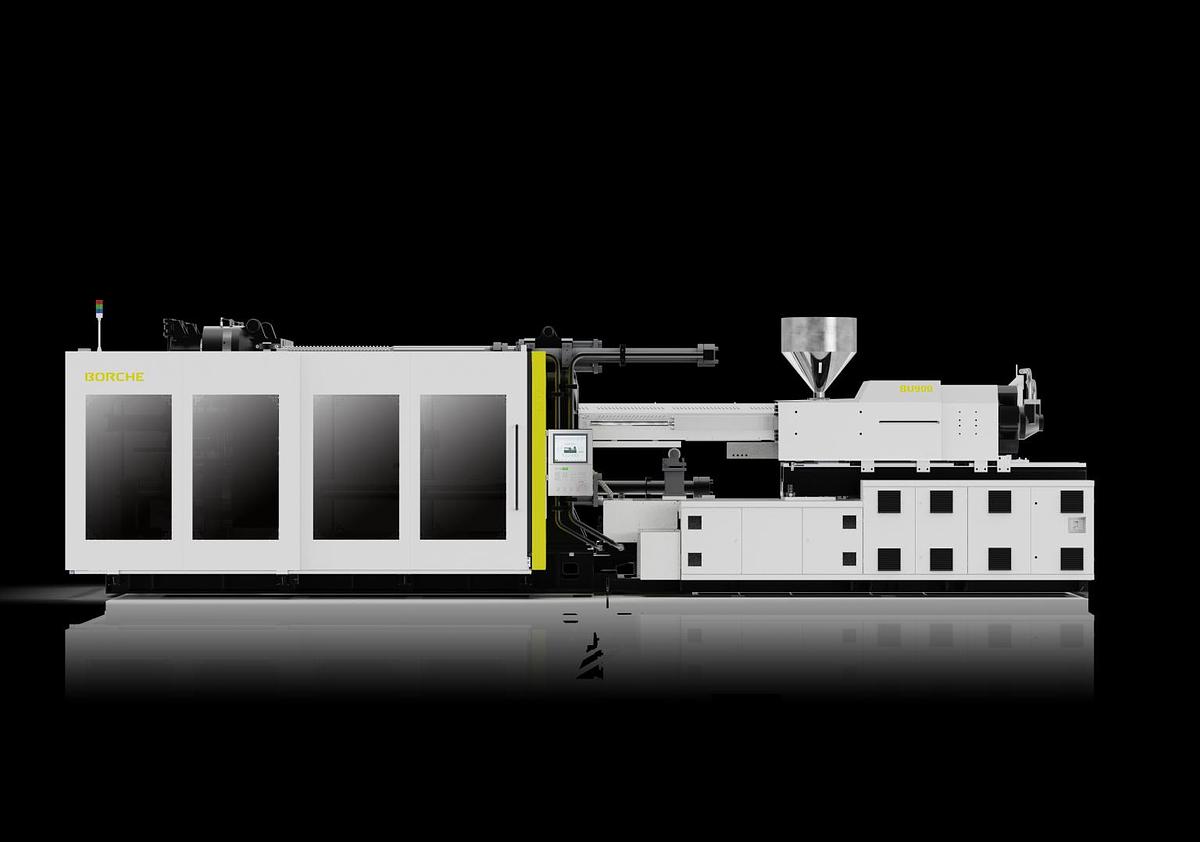

1650 Ton Borch 2 Platen Mold Machine

Description

EQUIPPED WITH: - Swivel Injection Unit - CE Standard/UL Certified Parts - KEBA 2880 Controller - 480 Volt - 4 x Core Pull - 4 x Air Blow - Robot Interface Euro12 - SPI Platens - Power Safety Gate - Centralized grease lubrication - Nozzle purge guard with switch - Back Pressure Valve - Pilot Check Valve - Oil Alarm - Water Manifolds - Anti-Vibration Level Pads - Optional Removeable Tiebar - ServiceNet - Free Start Up by Borche North America Service - Free Training BU MACHINE ADVANTAGES: BU Machines are shorter - have a smaller footprint more precise, clamp force can be adjusted, easier mold change, machine is faster and more reliable, faster mold opening, larger mold opening stroke, ideal for running larger parts.

Specifications

ModelBU1500T
ConditionUsed
Stock Number709
Shot Size217/277/321 oz.
Tonnage1650
Tie Bar Spacing58.26" x 58.26"
Platen Size76.77" x 76.77"
Daylight122.04"
Clamp Stroke94.48"
Mold Thickness27.55"/55.11"
