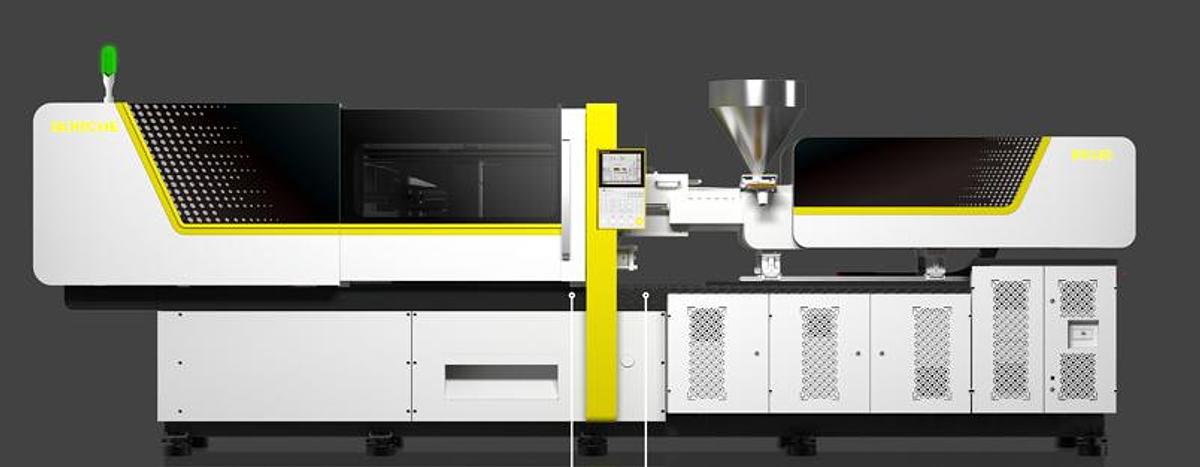

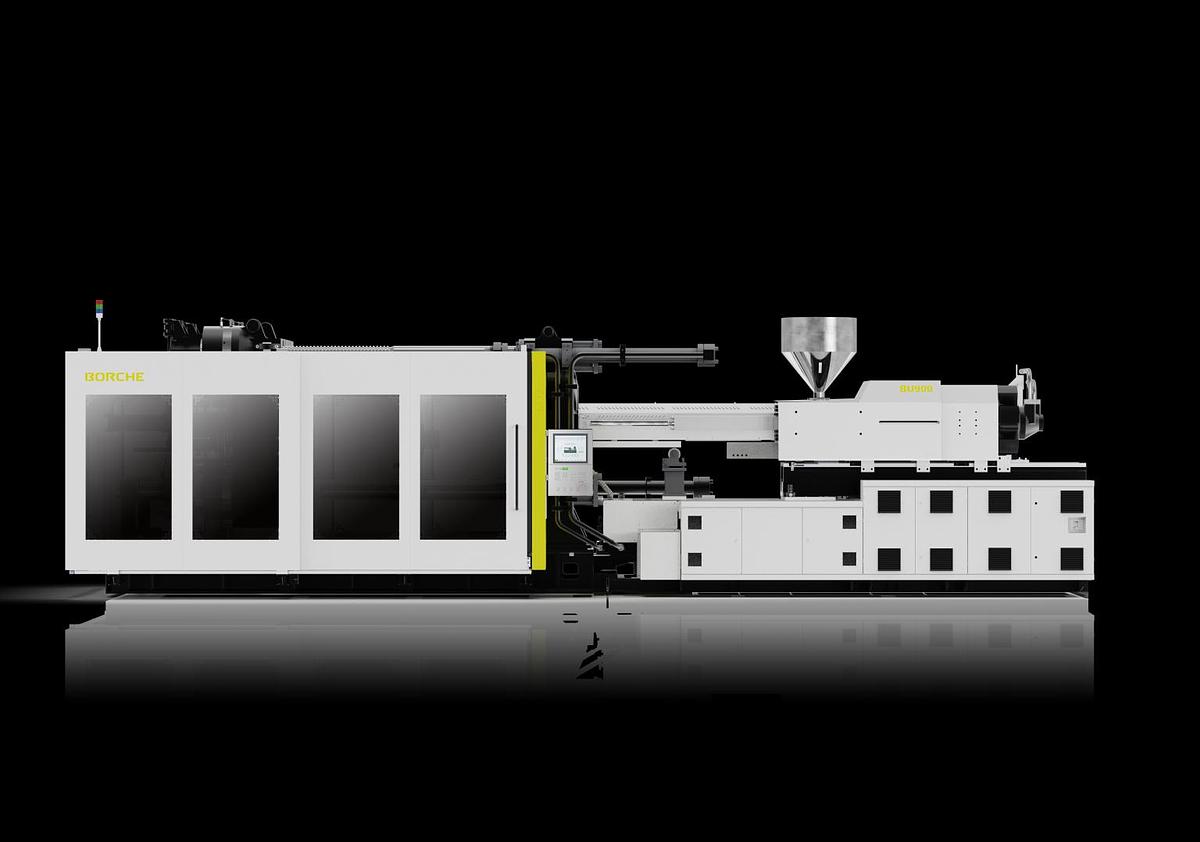

3630 Ton Borche Injection Mold Mach. NEW
Description
EQUIPPED WITH: - CE Standard/UL Certified Parts - KEBA 2880 Control - 480/3/60 - 5 x Core Pull - 4 x Air Blow - Robot Interface Euro12 - SPI Platens - Centralized grease lubrication - Nozzle purge guard with switch - Power Safety Gate - Hydraulic Safety Interlock - Mechanical Safety Interlock with sensor - 3-Color Alarm - Back Pressure Valve - Pilot Check Valve - Automotive centralized grease lubrication for tiebar - Oil Alarm - Water Manifolds - Anti-Vibration Leveling Pads - Optional Removeable Tiebar - ServiceNet - Free Startup by Borche North America Service - Free Training
Specifications
| Manufacturer | Borche |
| Model | BU3300 |
| Condition | New |
| Stock Number | 79337 |
| Shot Size | 1468 oz. |
| Tonnage | 3630 |
| Tie Bar Spacing | 85.04" x 74.8" |
| Platen Size | 112.60" x 102.36" |
| Daylight | 163.78" |
| Clamp Stroke | 124.41" |
| Mold Thickness | 39.37"/78.74" |
