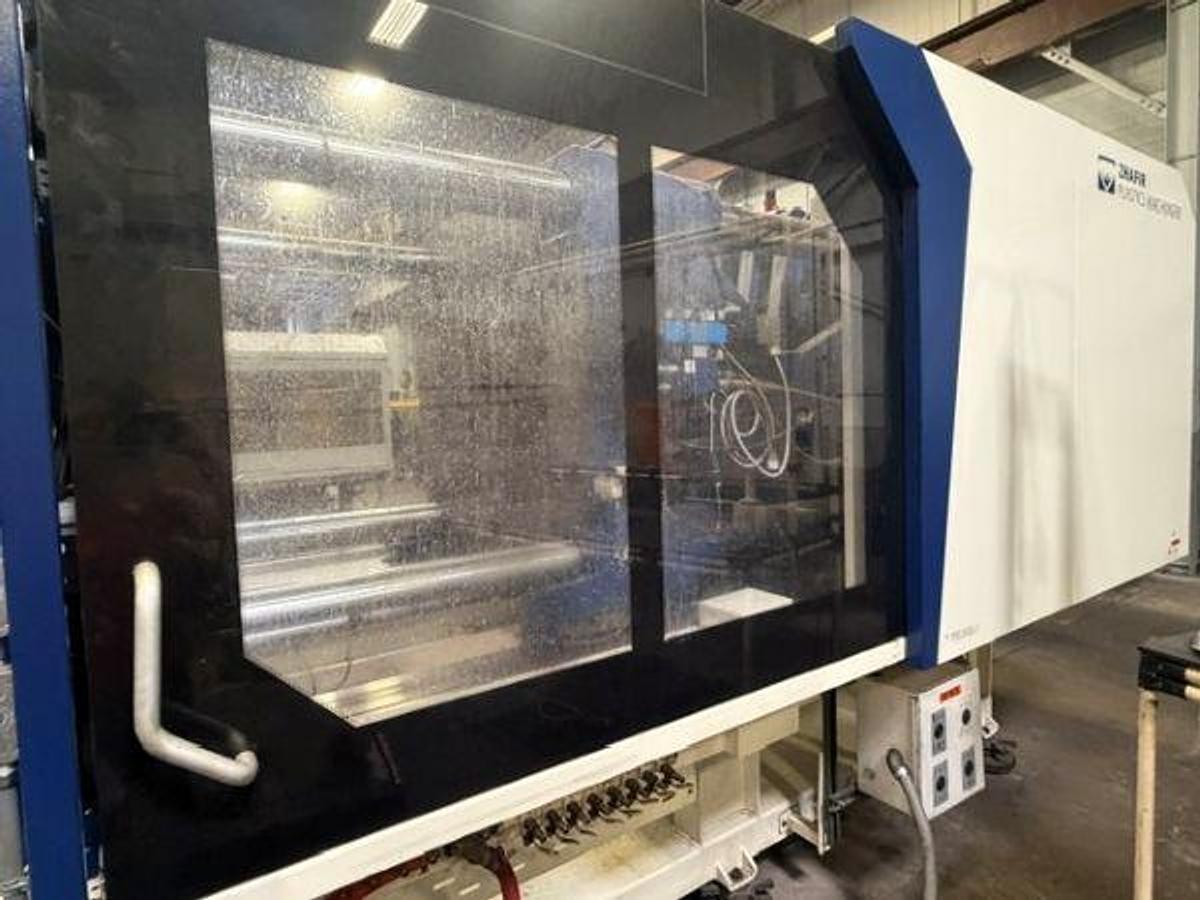

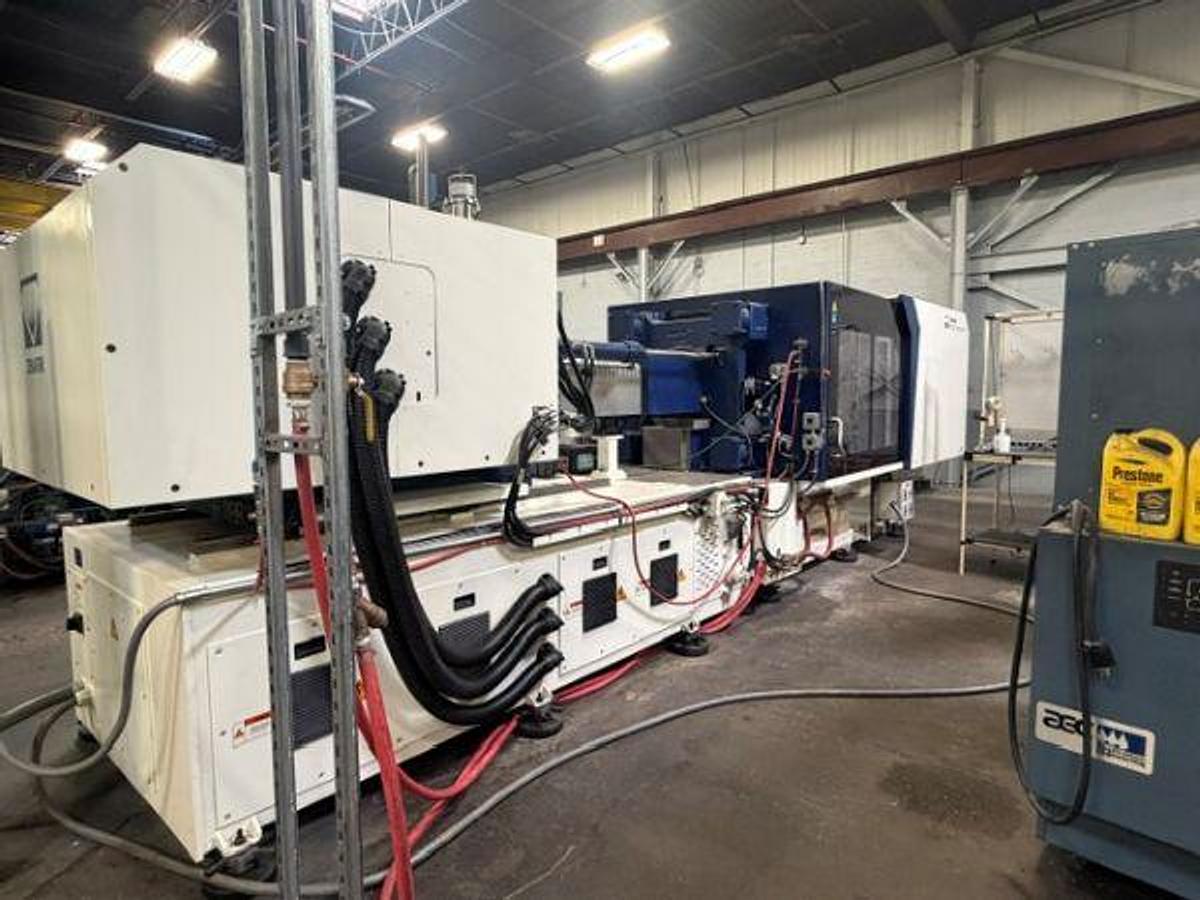

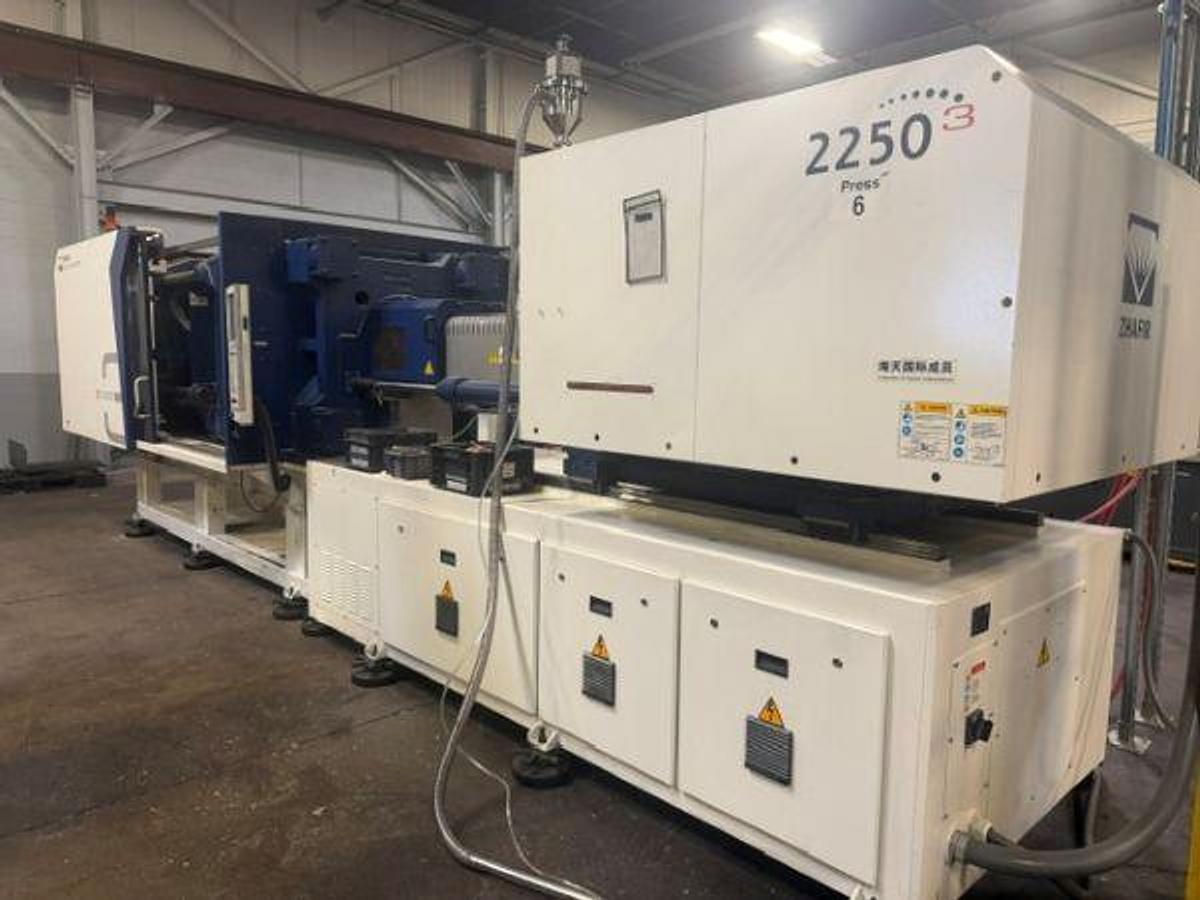

405 Ton Haitian Zafer Injection Mold Machine

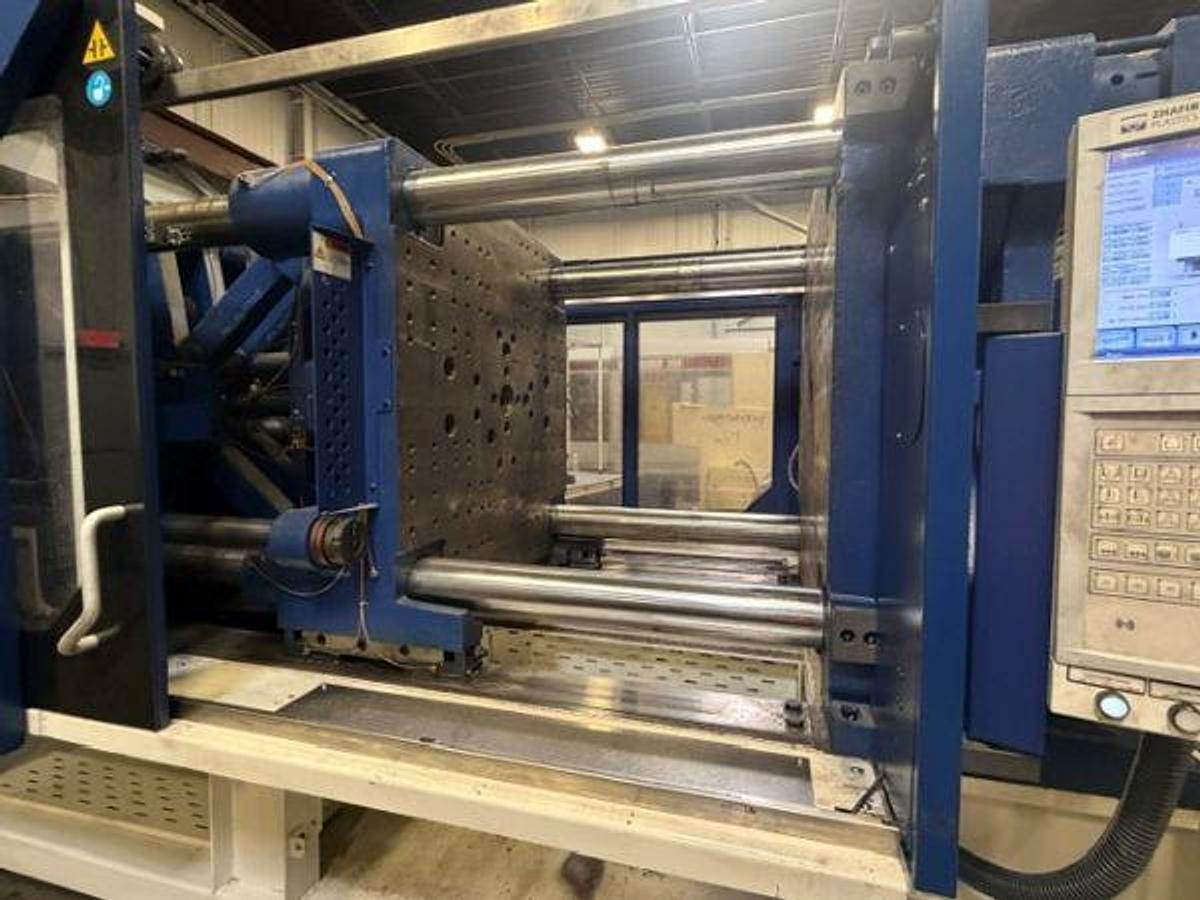

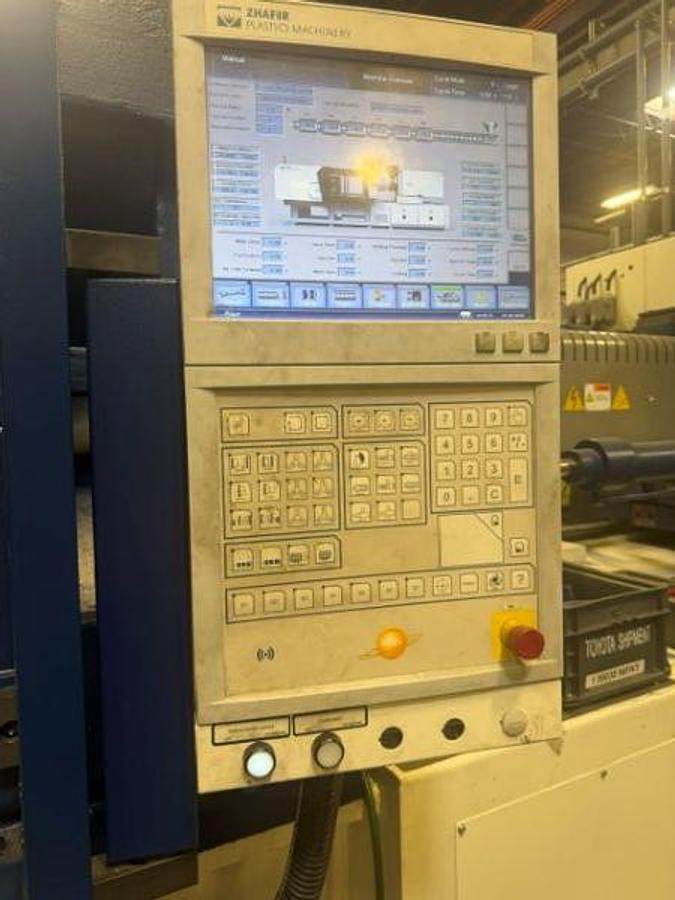

The 405 Ton Haitian Zafer Injection Mold Machine is a high-performance industrial equipment designed for efficient plastic molding processes. This used horizontal injection mold machine from Haitian offers a robust shot size of 39.75 oz., accommodating a variety of production demands. The machine features a sizeable tie bar spacing of 32.28 inches by 32.28 inches, coupled with a substantial platen size of 46.06 inches by 46.06 inches, allowing for flexible mold placements and operations. Equipped with a clamp stroke of 28.74 inches, the Zafer model supports a daylight opening of 56.69 inches, providing ample space for diverse mold applications. It accommodates molds with a minimum height of 12.6 inches and a maximum height of 27.95 inches, offering versatility for different project requirements. For operational control, the machine is equipped with a user-friendly Haitian Controller, streamlining the setup and production processes. Additional features include core pull capabilities, hydraulic knockout (K.O.), and a PPE loader with a magnet drawer, enhancing the functionality and productivity of the molding machine. This combination of features makes the Haitian Zafer a reliable choice for businesses looking to optimize their injection molding operations.
