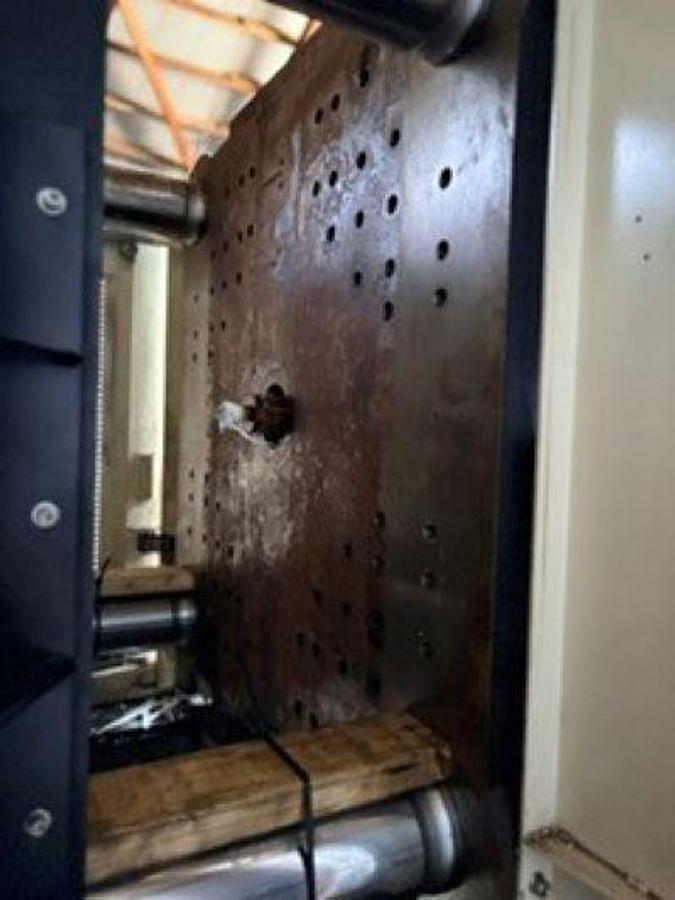

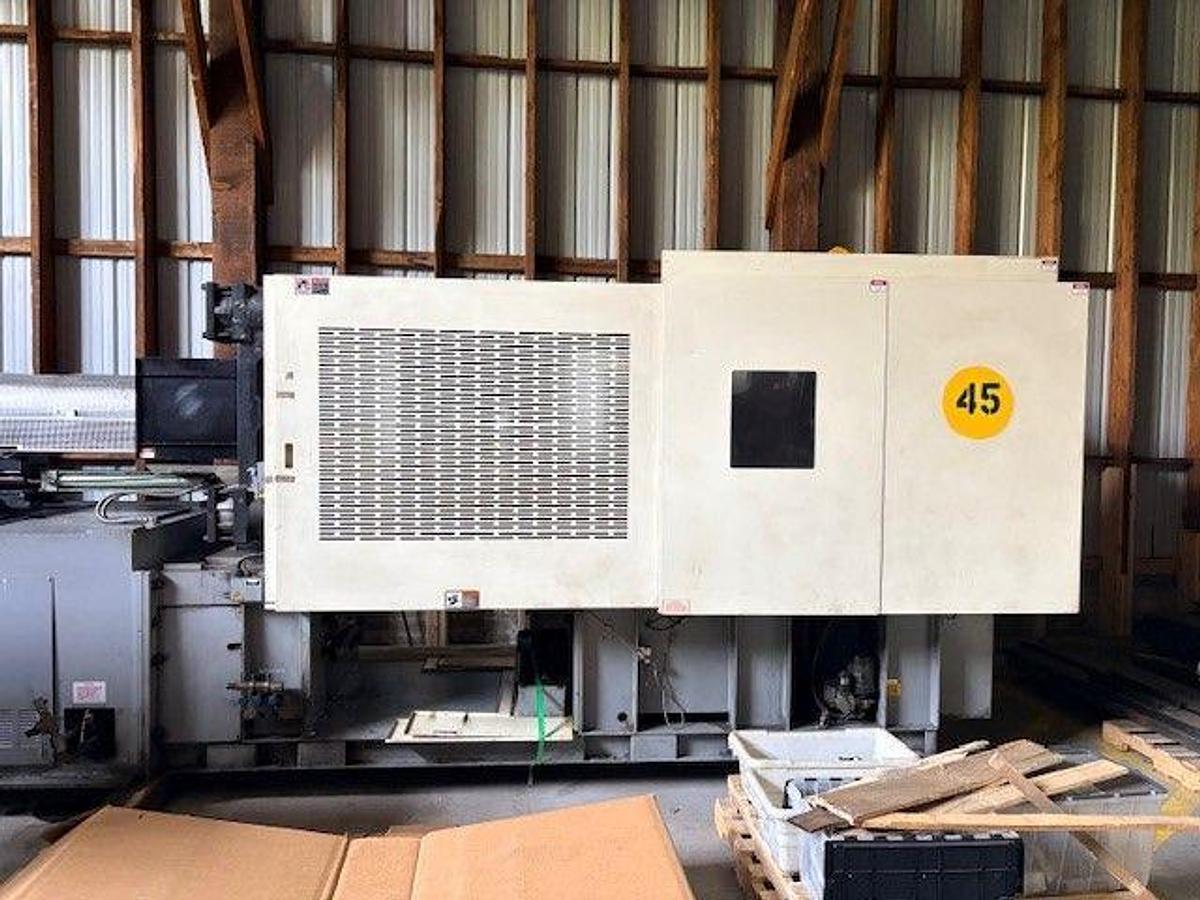

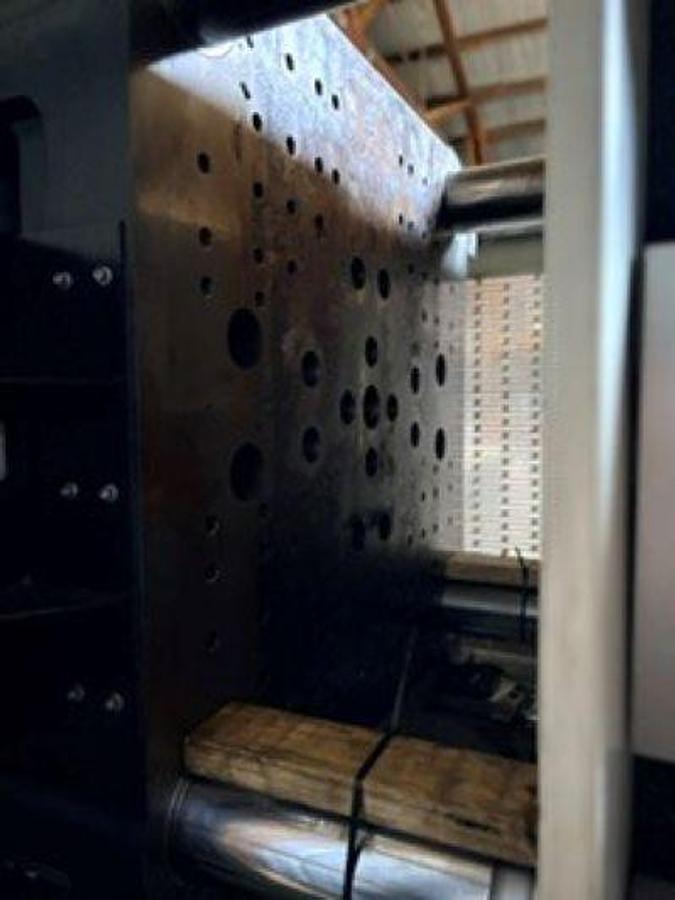

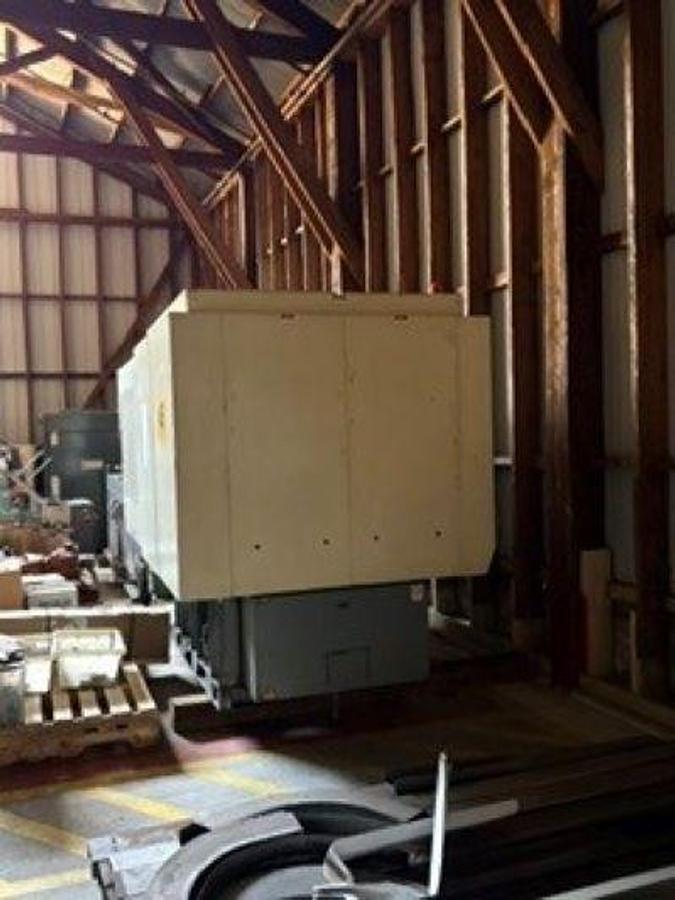

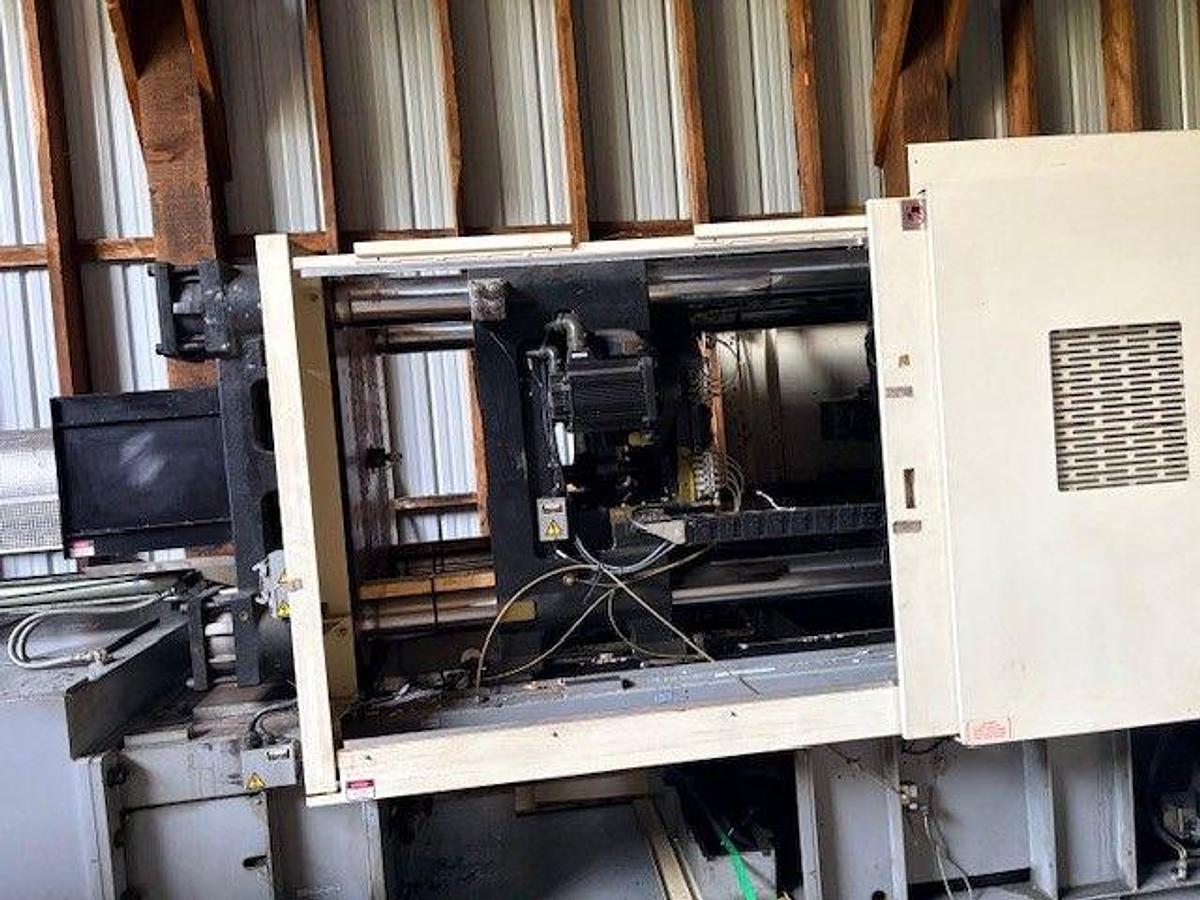

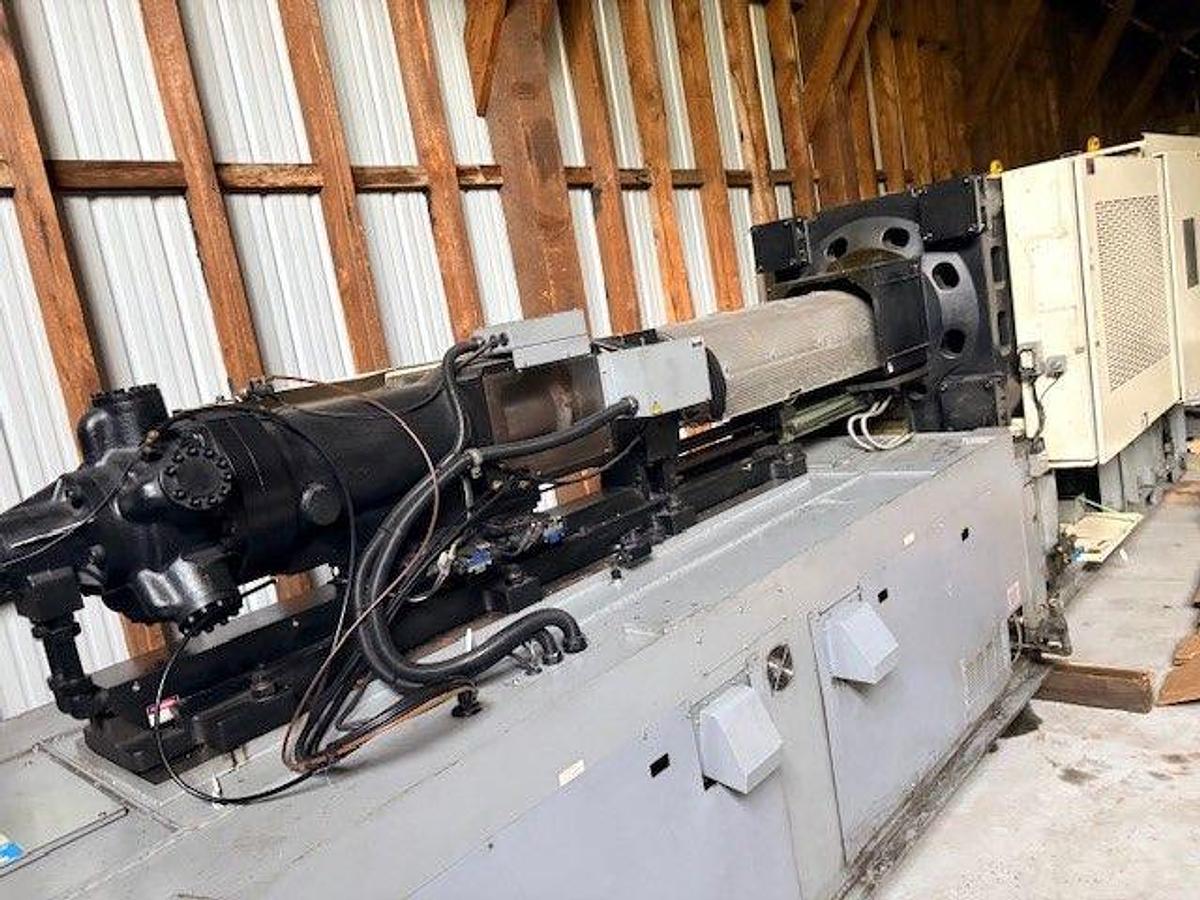

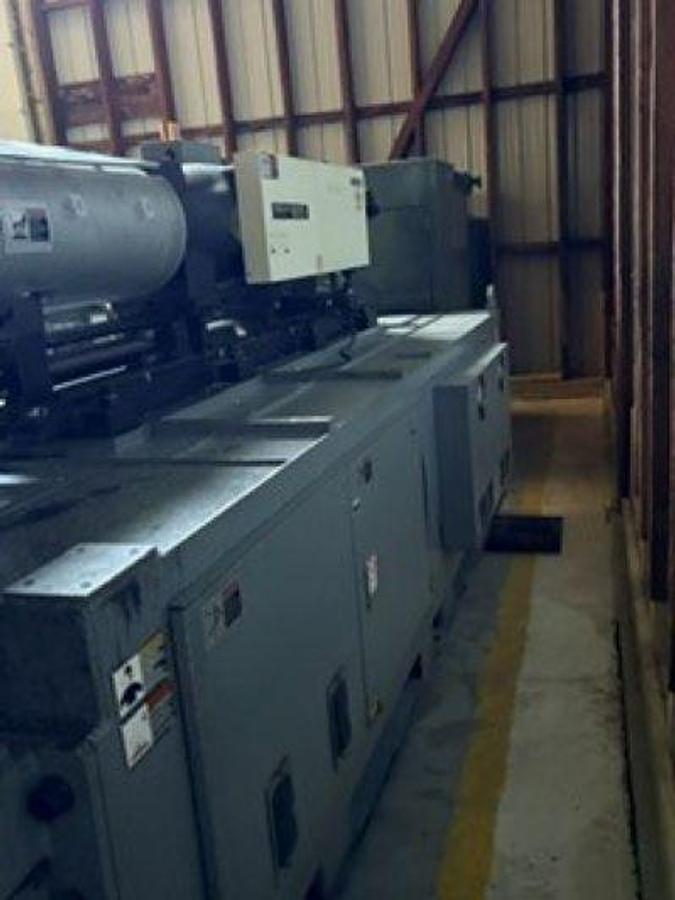

400 Ton Nissei Electric Injection Mold Machine

Description

The 400 Ton Nissei Electric Injection Mold Machine is a reliable solution for plastics manufacturing, designed for precision and efficiency in horizontal injection molding applications. This model, although used, reflects Nissei's reputation for quality and durability in industrial equipment. Its electric drive system ensures energy efficiency and reduced operational costs, making it an economically sound choice for manufacturers aiming to optimize production lines. This machine boasts a robust clamping force of 400 tons, capable of handling a wide variety of molds and materials with ease. It is well-suited for producing medium to large-sized parts, and its design accommodates a range of industrial molds. Users will appreciate its focus on precision, supporting consistent product quality and minimizing waste due to its reliable injection process. Ideal for factories focusing on sustainability and cost-effectiveness, the Nissei Electric Injection Mold Machine represents an excellent investment in used equipment. Its condition allows for continued performance and productivity, aligning with the technical expectations from Nissei machinery. This machine will enhance your manufacturing capabilities, ensuring a vital addition to your industrial setup.

Specifications

ManufacturerNissei
Year2007
ConditionUsed
Stock Number81246
Shot Size43.5 oz.
Tie Bar Spacing28.9" x 28.9"
Platen Size41.5" x 41.5"
Daylight52.8" max.
Clamp Stroke25.6"
Min/Max mold height13.8"/27.2"

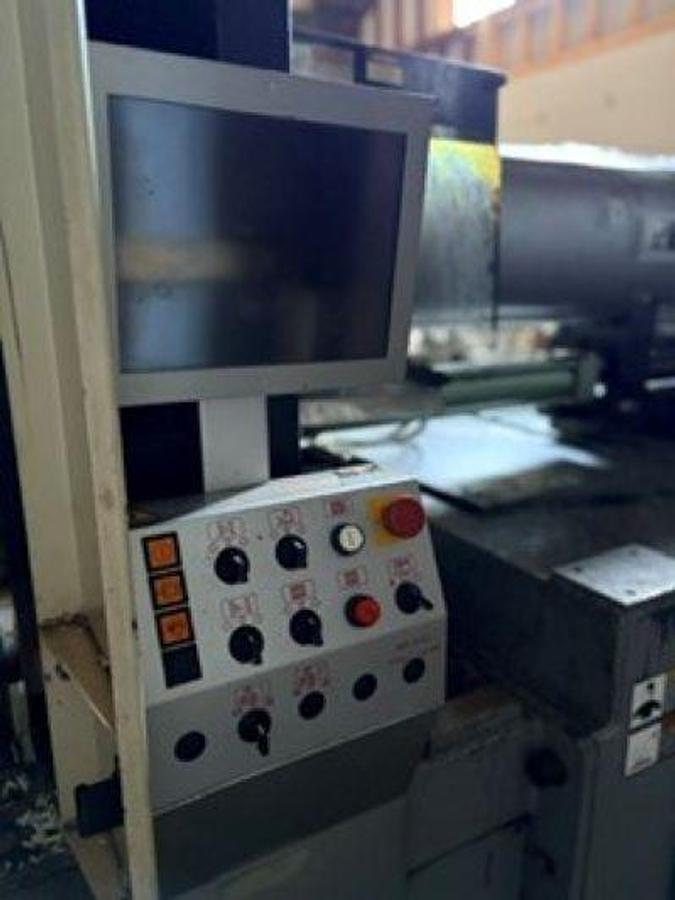

ControllerTACT
Core PullWired for core pull
Electrics220/3/60
COMMENTSBrand new spare parts - ball screw, tiebar, tiebar nut, 2 used amps, 2 used pump/motors - approx. value $50,000.00
